wingCellType

A cell is the part of its shell inside four borders: one at its leading and one at its trailing edge (cellPositioningChordwiseType) and one at its inner and one at its outer end (cellPositioningSpanwiseType). Its corners are the points where these borders meet, so a cell bounded by two spars and two ribs has its corners where those ribs meet those spars.

The four borders may be given in different ways, e.g. the leading edge by a spar and the inner end by relative coordinates. A cell is usually a quadrilateral; if a spar that bounds it has a kink inside the cell, it has more corners. Where a border is given as a contour coordinate, all four borders have to be.

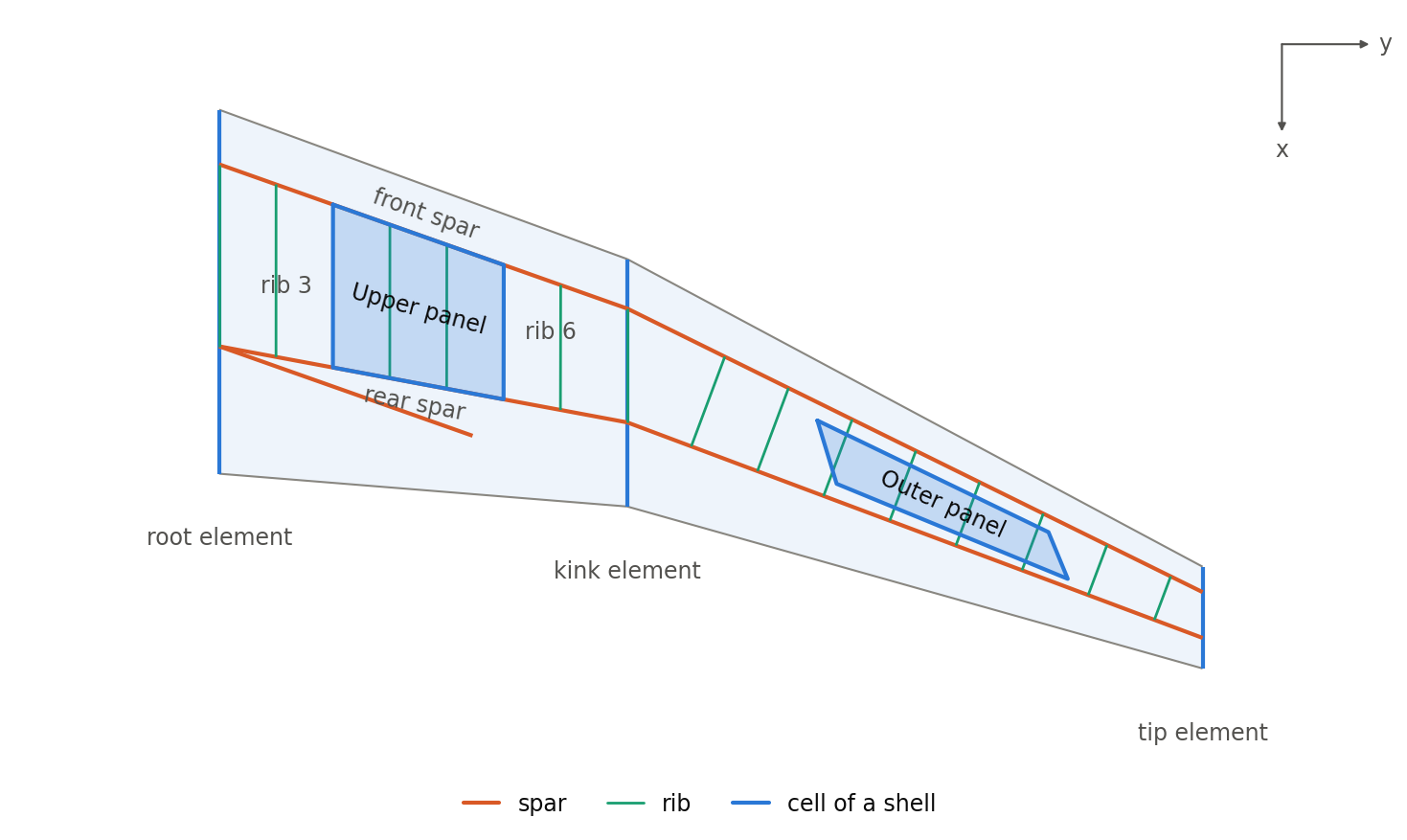

Top view of a wing with the two cells of its upper shell: an inner one bounded by the front and the rear spar and by the third and the sixth rib of the inner rib set, and an outer one bounded by relative coordinates, whose borders run at an angle to the lines of constant eta and xsi

The figure shows the two cells of the upper shell of the example in the top view: the inner one is bounded by the two spars and by the third and the sixth rib of the inner set, the outer one by relative coordinates. The third cell of the example, on the lower shell, is bounded by contour coordinates and is not shown; its borders run on the skin itself.

Attributes

Name	Type	Use	Description
`@externalDataDirectory`	`xsd:string`	optional	Directory of the external data file
`@externalDataNodePath`	`xsd:string`	optional	Path of the node inside the external data file
`@externalFileName`	`xsd:string`	optional	Name of the external data file
`@uID`	`xsd:ID`	required	UID

Child elements

Name	Type	OccurrenceHow often the element may appear at this place. The schema writes it as minOccurs and maxOccurs on the declaration.	Description
allThe children below may appear in any order. Each may appear at most once.
`skin`	`wingSkinType`	[1..1] required	Skin of the cell, in place of the skin of the shell
`stringer`	`wingStringerType`	[0..1] optional	Stringers of the cell, in place of the stringers of the shell
`positioningLeadingEdge`	`cellPositioningChordwiseType`	[1..1] required	Border of the cell towards the leading edge
`positioningTrailingEdge`	`cellPositioningChordwiseType`	[1..1] required	Border of the cell towards the trailing edge
`positioningInnerBorder`	`cellPositioningSpanwiseType`	[1..1] required	Border of the cell at its inner end
`positioningOuterBorder`	`cellPositioningSpanwiseType`	[1..1] required	Border of the cell at its outer end

Used by

In a dataset · 24 paths

In the schema · 1 declaration

Type	Name
`wingCellsType`	`cell`
