leadingEdgeShapeType

The leading edge of the control surface is a smooth curve from the lower to the upper surface of the wing. It passes through the nose point above P_LE, at the relative height <relHeightLE> between the lower (0) and the upper (1) surface, and meets the upper and the lower surface of the wing tangentially at <xsiUpperSkin> and <xsiLowerSkin>. These two positions are fractions of the chord of the control surface from P_LE to P_TE, measured from its trailing edge (0) to its leading edge (1). The inner and the outer border are defined independently of each other.

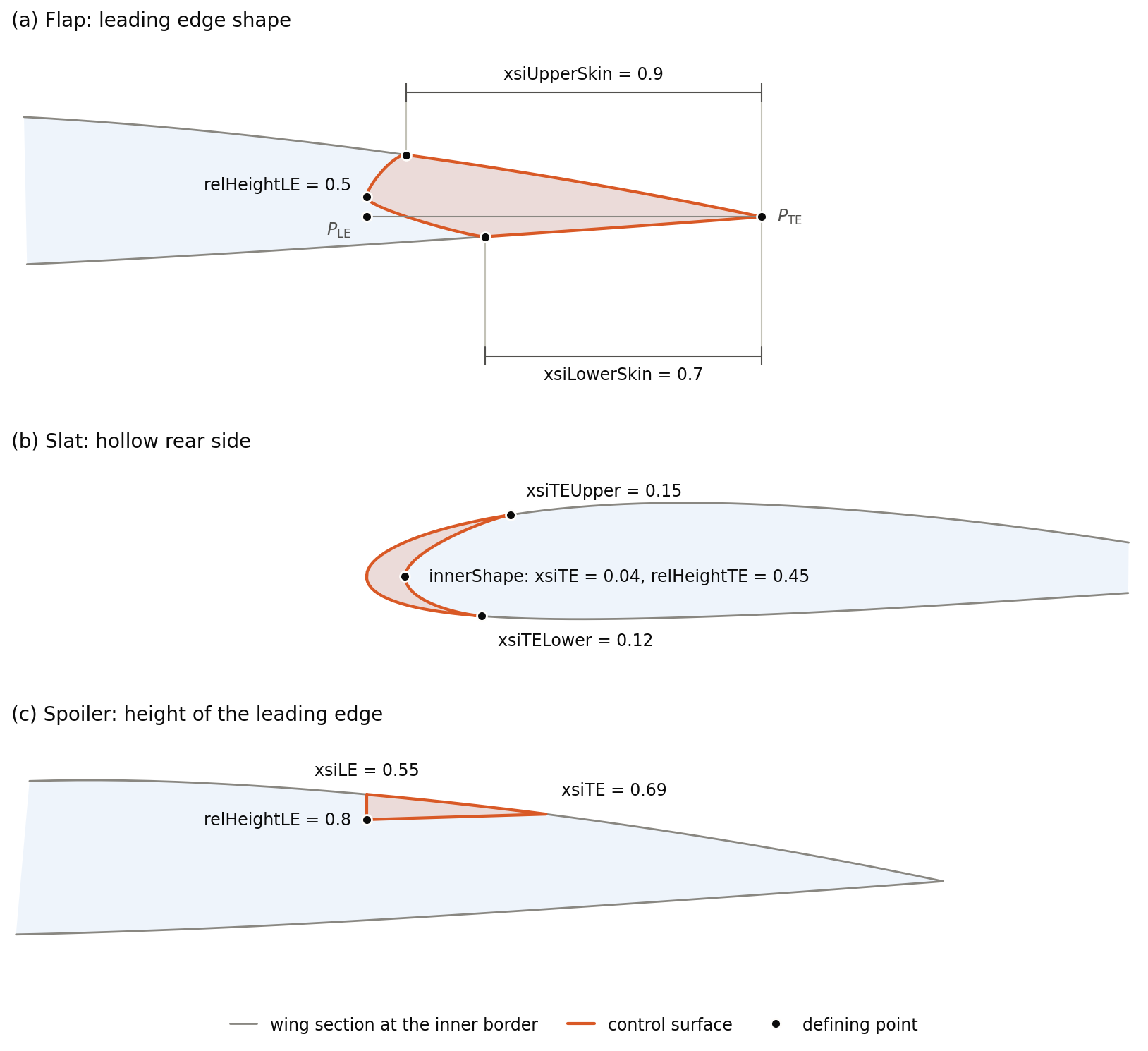

Sections at the inner borders of three control surfaces: (a) a flap whose rounded leading edge passes through the nose point at relHeightLE 0.5 and meets the skin at xsiUpperSkin 0.9 and xsiLowerSkin 0.7 of the flap chord from its trailing edge; (b) a slat whose hollow rear side runs from xsiTEUpper 0.15 over the point at xsiTE 0.04 and relHeightTE 0.45 to xsiTELower 0.12; (c) a spoiler between xsiLE 0.55 and xsiTE 0.69 with the lowest point of its leading edge at relHeightLE 0.8

Figure (a) shows the leading edge shape at the inner border of the flap of the example in controlSurfacesType.

Attributes

Name	Type	Use	Description
`@externalDataDirectory`	`xsd:string`	optional	Directory of the external file the element was read from, as URI
`@externalDataNodePath`	`xsd:string`	optional	Path of the parent element in the merged dataset, at which the element was inserted from an external file
`@externalFileName`	`xsd:string`	optional	Name of the external file the element was read from

Child elements

Name	Type	OccurrenceHow often the element may appear at this place. The schema writes it as minOccurs and maxOccurs on the declaration.	Description
allThe children below may appear in any order. Each may appear at most once.
`relHeightLE`	`doubleBaseType`	[1..1] required	Relative height of the nose point between the lower (0) and the upper (1) surface of the wing
`xsiUpperSkin`	`doubleBaseType`	[1..1] required	Position where the leading edge meets the upper surface, as a fraction of the chord of the control surface from its trailing edge
`xsiLowerSkin`	`doubleBaseType`	[1..1] required	Position where the leading edge meets the lower surface, as a fraction of the chord of the control surface from its trailing edge

Used by

In a dataset · 18 paths

In the schema · 3 declarations

Type	Name
`controlSurfaceBorderLeadingEdgeType`	`leadingEdgeShape`
`controlSurfaceBorderSpoilerType`	`leadingEdgeShape`
`controlSurfaceBorderTrailingEdgeType`	`leadingEdgeShape`
