controlSurfaceBorderTrailingEdgeType

A border is a section of the wing through two points of the chord surface of the component segment: the leading edge point P_LE at <etaLE> and <xsiLE>, and the trailing edge point P_TE at <etaTE> and ξ = 1, i.e. on the trailing edge of the wing. <etaTE> defaults to <etaLE>. The section plane contains both points and the normal of the component segment. The η and ξ coordinates refer to the parent of the control surface.

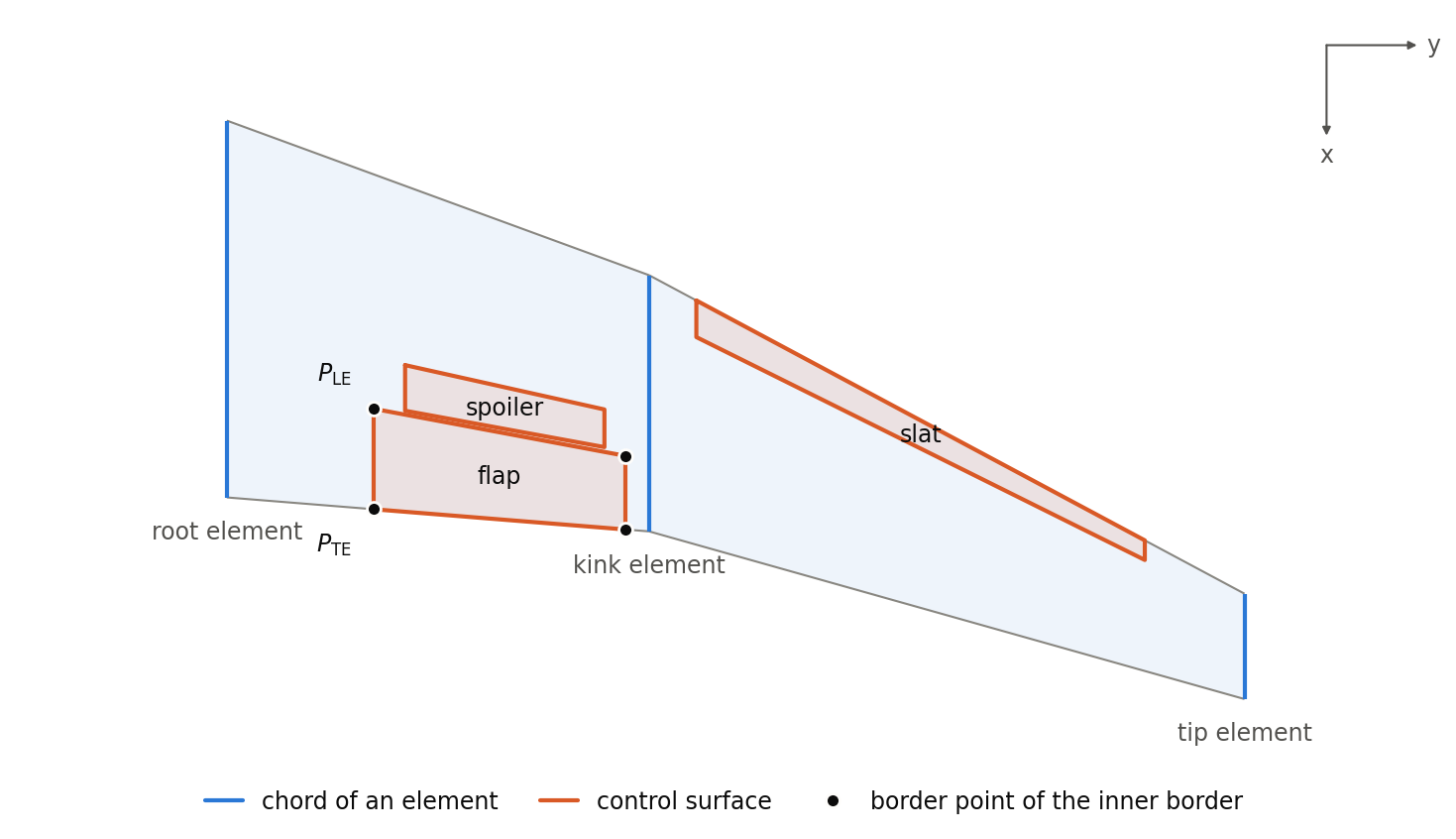

Top view of a wing with a flap at the trailing edge inboard of the kink, a spoiler in front of it and a slat at the leading edge outboard of the kink; the leading and trailing edge points of the inner and outer border of the flap are marked

Without further data, the front of the trailing edge device is a straight cut through P_LE, perpendicular to the chord from P_LE to P_TE. <leadingEdgeShape> rounds the leading edge (leadingEdgeShapeType), and <airfoil> replaces the section by an airfoil contour (contourReferenceType). <innerShape> describes the hollow rear side of a leading edge device and is not intended for trailing edge devices.

Attributes

Name	Type	Use	Description
`@externalDataDirectory`	`xsd:string`	optional	Directory of the external file the element was read from, as URI
`@externalDataNodePath`	`xsd:string`	optional	Path of the parent element in the merged dataset, at which the element was inserted from an external file
`@externalFileName`	`xsd:string`	optional	Name of the external file the element was read from

Child elements

Name	Type	OccurrenceHow often the element may appear at this place. The schema writes it as minOccurs and maxOccurs on the declaration.	Description
allThe children below may appear in any order. Each may appear at most once.
`etaLE`	`etaIsoLineType`	[1..1] required	Spanwise position of the leading edge point
`etaTE`	`etaIsoLineType`	[0..1] optional	Spanwise position of the trailing edge point (default: etaLE)
`xsiLE`	`xsiIsoLineType`	[1..1] required	Chordwise position of the leading edge point
`innerShape`	`leadingEdgeHollowType`	[0..1] optional	Not intended for trailing edge devices
`leadingEdgeShape`	`leadingEdgeShapeType`	[0..1] optional	Shape of the leading edge
`airfoil`	`contourReferenceType`	[0..1] optional	Airfoil contour of the border

Type	Name
`controlSurfaceOuterShapeTrailingEdgeType`	`innerBorder`
`controlSurfaceOuterShapeTrailingEdgeType`	`outerBorder`
