| leadingEdgeShapeType Complex Type |
Optional definition of the leading edge shape of trailing edge devices (TED).
Namespace: Empty
Schema: Empty
Base Type
UsagesChildren| Name | Occurrences | Description |
|---|---|---|
 All | ||
 relHeightLE | Relative height of the leading edge of the TED, based on the airfoil height of the parent at this position. Optional. | |
| xsiLowerSkin | Relative chordwise lower skin position, of the border, where the airfoil of the TED is equivalent of the airfoil from the parent. Measured from the rear to the front (0 = TED trailing edge; 1 = TED leading edge). Values form the outer border default to the value of the inner border. Optional. | |
| xsiUpperSkin | Relative chordwise upper skin position, of the border, where the airfoil of the TED is equivalent of the airfoil from the parent. Measured from the rear to the front (0 = TED trailing edge; 1 = TED leading edge). Values form the outer border default to the value of the inner border. Optional. |
Attributes| Name | Type | Required | Description |
|---|---|---|---|
 externalDataDirectory |  string | Directory of the external data file | |
| externalDataNodePath | string | Path of the node inside the external data file | |
| externalFileName | string | Name of the external data file |

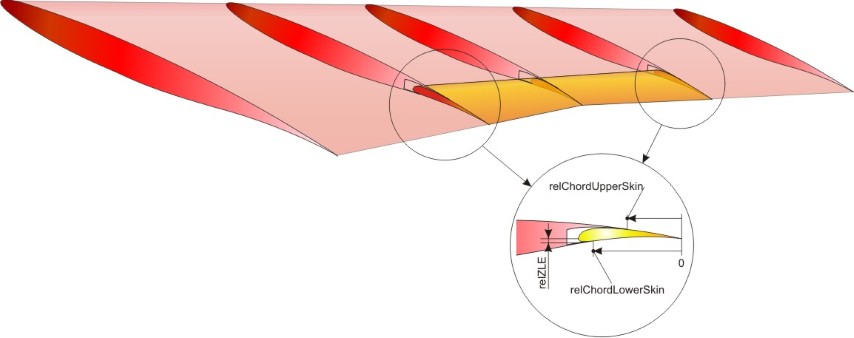

RemarksAll parameters are optional. For the definition of the parameters, please refer to the picture below. Parameters from the outer border default to the parameters of the inner border.
