systemsType Complex Type

Systems

Namespace: Empty

Schema: Empty

Base Type
Usages
Children
NameOccurrencesDescription
All All
      Element cockpitControls[0, 1]

Cockpit controls, e.g. stickRoll, pedals

      Element commandCases[0, 1]

Different commandCases that are commanded, e.g. roll, accelerate

      Element controlDistributors[0, 1]

Control Distributors, deliver inputs to the control actuators. E.g. different angles of different ailerons.

      Element controlLaws[0, 1]

Control laws, for regulated actuation

      Element genericSystems[0, 1]

Node for geometrical layout of system components based on simple geometric shapes

Attributes
NameTypeRequiredDescription
Attribute externalDataDirectorySimple Type string

Directory of the external data file

Attribute externalDataNodePathSimple Type string

Path of the node inside the external data file

Attribute externalFileNameSimple Type string

Name of the external data file

Remarks

Aircraft's control system data

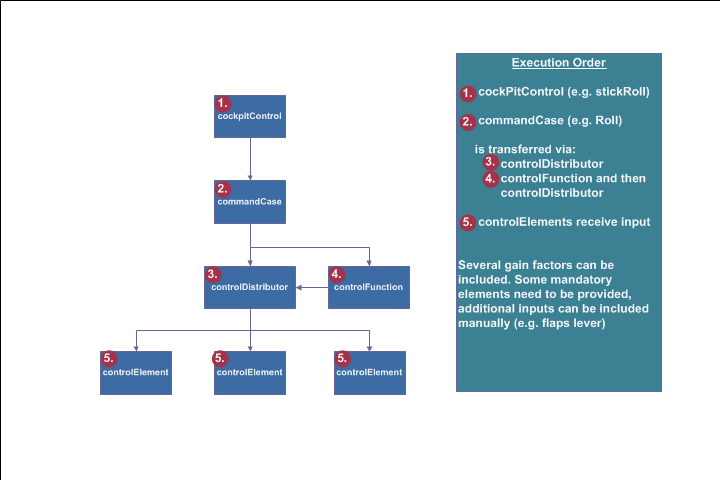

Please see the attached picture for further documentation

controls
