wingComponentSegmentStructureType

The structure of a wing is defined per component segment, and everything in it is positioned on the chord surface of that component segment (componentSegmentType), in the relative coordinates η and ξ or by reference to a spar or a rib.

<spars> run along the span through spar positions on the chord surface (wingSparType).
<ribsDefinitions> stand across the wing, spaced along a reference line or placed one by one (wingRibsDefinitionsType).
<upperShell> and <lowerShell> are the outer surface above and below the chord surface, with their skin, their stringers and the cells that give a region properties of its own (wingShellType).
<intermediateStructure> fills the space between the two shells where a wing has no hollow box (wingIntermediateStructureCellType).
<wingCutOuts> take the skin away where the wing needs an opening (wingCutOutType).

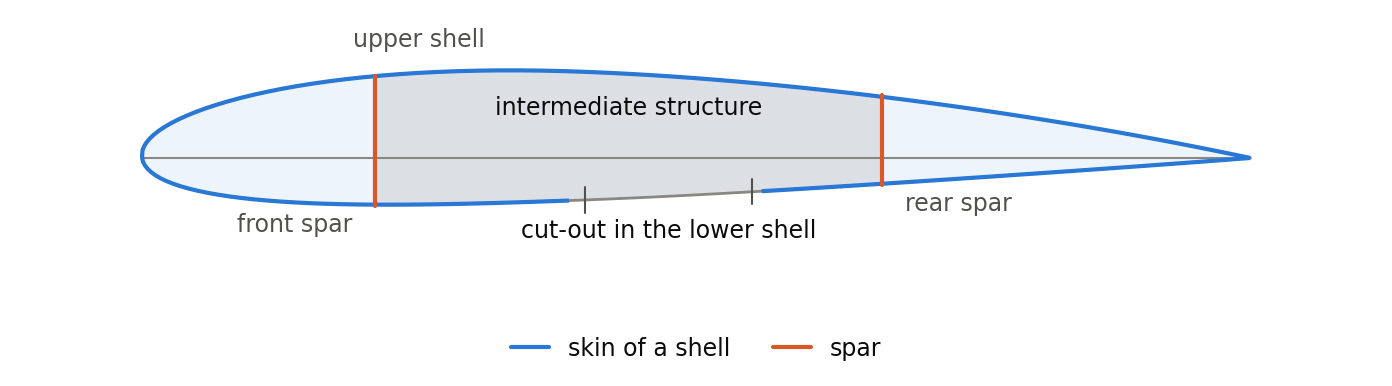

Section through a wing between its front and rear spar: the skin of the upper and the lower shell, the filling between the two shells, and the opening that a cut-out leaves in the lower shell between the relative chordwise positions 0.4 and 0.55

The figure shows a section through the wing of the example between its two spars: the shells above and below, the filling between them and the cut-out that leaves an opening in the lower shell.

Attributes

Name	Type	Use	Description
`@externalDataDirectory`	`xsd:string`	optional	Directory of the external file the element was read from, as URI
`@externalDataNodePath`	`xsd:string`	optional	Path of the parent element in the merged dataset, at which the element was inserted from an external file
`@externalFileName`	`xsd:string`	optional	Name of the external file the element was read from

Child elements

Name	Type	OccurrenceHow often the element may appear at this place. The schema writes it as minOccurs and maxOccurs on the declaration.	Description
allThe children below may appear in any order. Each may appear at most once.
`upperShell`	`wingShellType`	[1..1] required	Skin, stringers and cells of the upper side
`lowerShell`	`wingShellType`	[1..1] required	Skin, stringers and cells of the lower side
`intermediateStructure`	`wingIntermediateStructureCellsType`	[0..1] optional	Filling between the two shells
`ribsDefinitions`	`wingRibsDefinitionsType`	[0..1] optional	Ribs of the component segment
`spars`	`wingSparType`	[0..1] optional	Spars of the component segment
`wingCutOuts`	`wingCutOutsType`	[0..1] optional	Openings in the shells

Type	Name
`componentSegmentType`	`structure`
`leadingEdgeDeviceType`	`structure`
`spoilerType`	`structure`
`trailingEdgeDeviceType`	`structure`
