componentSegmentsType

complexType · extension complexBaseType · sequence

Component segments of a wing

The parts of a wing that carry its structure, control surfaces, fuel tanks, attachments and structural mounts (componentSegmentType). Each component segment spans one or more consecutive segments of the wing and provides the relative coordinates η and ξ in which these parts are positioned.

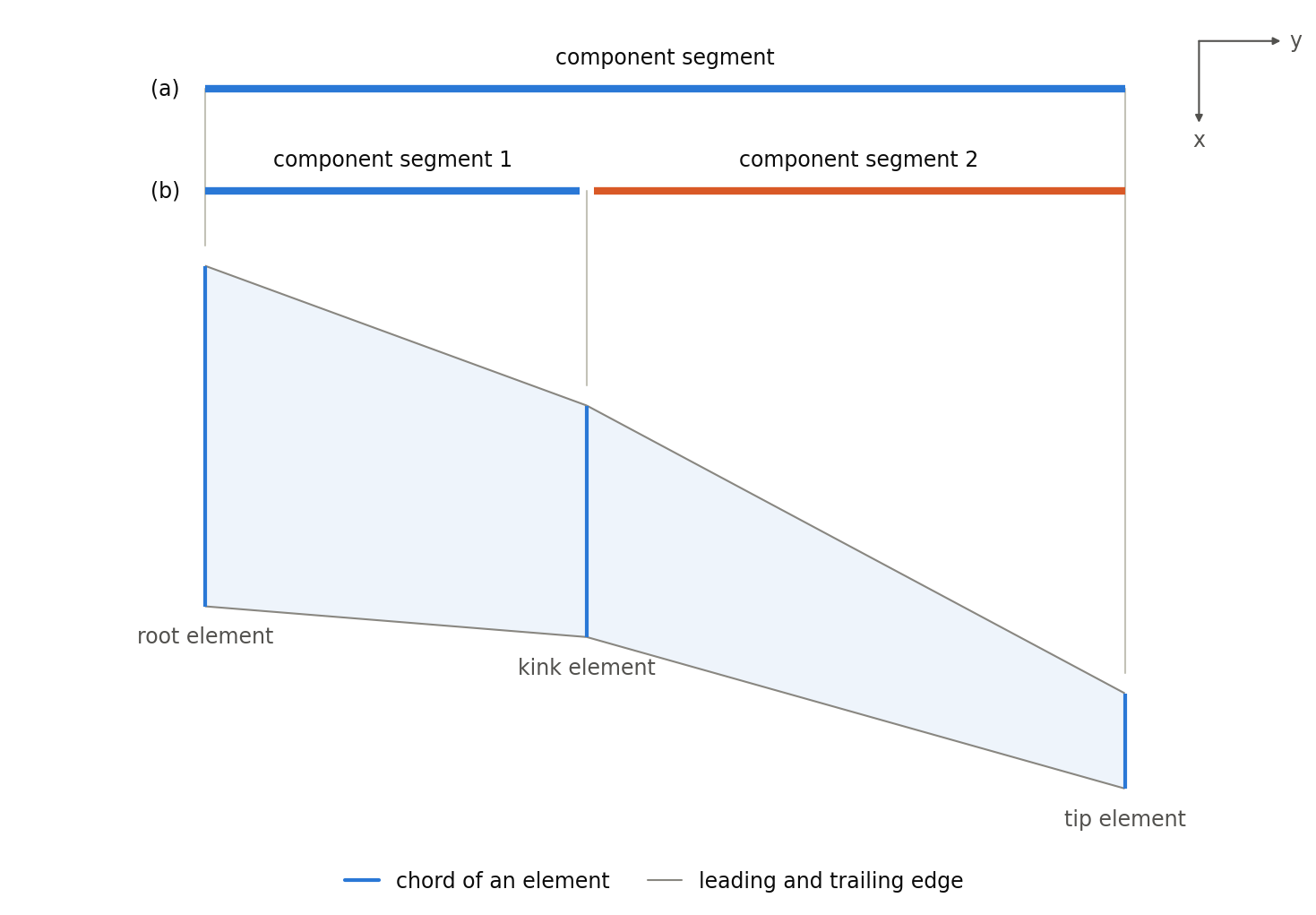

Top view of a wing with root, kink and tip element and two rows of brackets above it: (a) one component segment from the root to the tip element, (b) component segment 1 from the root to the kink and component segment 2 from the kink to the tip element

The figure shows two ways to divide the example wing of wingType, which has a root, a kink and a tip element and two segments: (a) one component segment spanning both segments, as in the example, or (b) one component segment for each segment.

Attributes

NameTypeConstraintsUseDefaultDescription
@externalDataDirectoryxsd:stringoptionalDirectory of the external file the element was read from, as URI
@externalDataNodePathxsd:stringoptionalPath of the parent element in the merged dataset, at which the element was inserted from an external file
@externalFileNamexsd:stringoptionalName of the external file the element was read from

Child elements

NameTypeConstraintsOccurrenceHow often the element may appear at this place. The schema writes it as minOccurs and maxOccurs on the declaration.DefaultDescription
sequenceThe children below must appear in exactly this order. Each may repeat as often as its own occurrence allows.
componentSegmentcomponentSegmentType[1..∞] one or moreComponent segment

Used by

In a dataset · 3 paths

In the schema · 1 declaration

TypeName
wingTypecomponentSegments
