actuatorParentAttachmentType

complexType · extension complexBaseType · all

Joint of an actuator on the wing

<parentXsi> is the relative chordwise coordinate of the joint on the chord of the parent of the control surface, <parentHeight> its height between the lower (0) and the upper (1) surface of the wing at that position; <material> gives the material of the attachment.

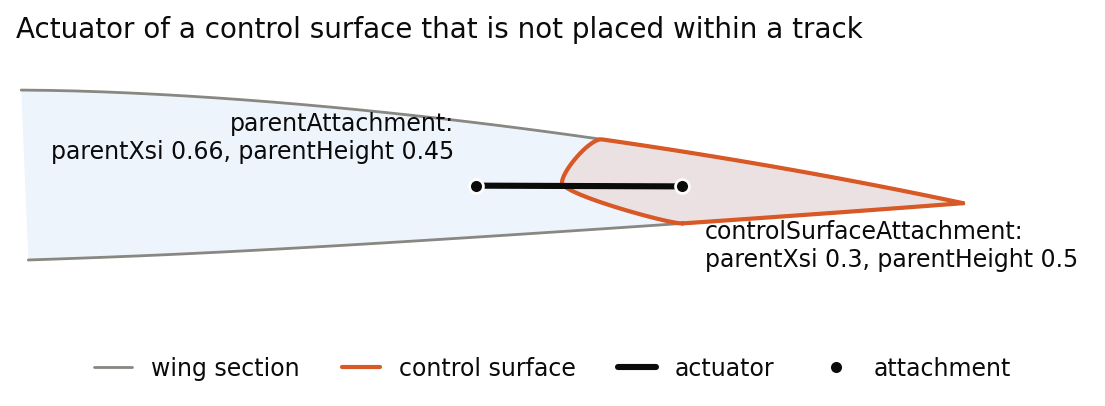

Section of a wing with a flap and the actuator that drives it, drawn from its attachment on the wing at parentXsi 0.66 and parentHeight 0.45 to its attachment on the flap at parentXsi 0.3 and parentHeight 0.5

Attributes

NameTypeConstraintsUseDefaultDescription
@externalDataDirectoryxsd:stringoptionalDirectory of the external file the element was read from, as URI
@externalDataNodePathxsd:stringoptionalPath of the parent element in the merged dataset, at which the element was inserted from an external file
@externalFileNamexsd:stringoptionalName of the external file the element was read from

Child elements

NameTypeConstraintsOccurrenceHow often the element may appear at this place. The schema writes it as minOccurs and maxOccurs on the declaration.DefaultDescription
allThe children below may appear in any order. Each may appear at most once.
parentXsidoubleBaseType[1..1] requiredRelative chordwise coordinate of the joint on the chord of the parent
parentHeightdoubleBaseType[1..1] requiredHeight of the joint between the lower (0) and the upper (1) surface of the wing
materialmaterialDefinitionType[1..1] requiredMaterial of the attachment

Used by

In a dataset · 9 paths

In the schema · 1 declaration

TypeName
actuatorAttachmentTypeparentAttachment
