| cabinGeometryType Complex Type |
Geometry
Namespace: Empty
Schema: Empty
Base Type
UsagesChildren| Name | Occurrences | Description |
|---|---|---|
 All | ||
 contours | Contours | |
| description | [0, 1] | Description |
| name | Name | |
| x | Vector of x coordinates |
Attributes| Name | Type | Required | Description |
|---|---|---|---|
 externalDataDirectory |  string | Directory of the external data file | |
| externalDataNodePath | string | Path of the node inside the external data file | |
| externalFileName | string | Name of the external data file |
Remarks[WARNING: This type is known to be susceptible to inconsistencies and might therefore be removed in a future version of CPACS]

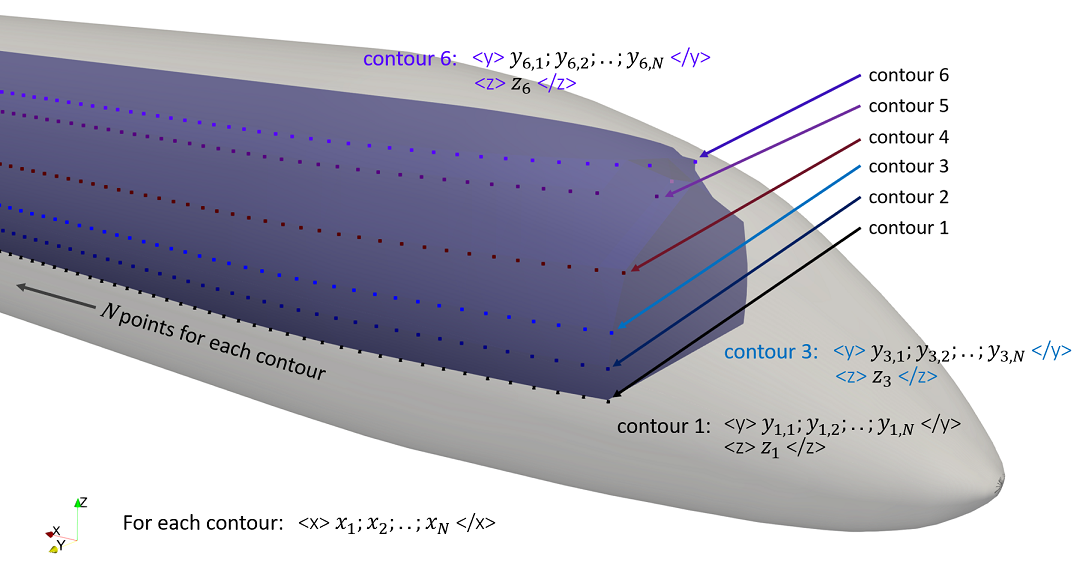

The geometry of the cabin roughly corresponds to the available design space in the cabin. It is given in terms of constant height contour lines. The lines all share a common x-vector. The y vector provides the lateral contour at z-coordinate provided by the constant value z. One or more contour lines can be given. The cabin geometry is assumed to be symmetric.
