| rectangleProfileType Complex Type |
Rectangle
Namespace: Empty
Schema: Empty
Base Type
UsagesChildren| Name | Occurrences | Description |
|---|---|---|
 All | ||
 cornerRadius | [0, 1] | Radius of the rectangle corners |
| heightToWidthRatio | Height-to-width ratio |
Attributes| Name | Type | Required | Description |
|---|---|---|---|
 externalDataDirectory |  string | Directory of the external data file | |
| externalDataNodePath | string | Path of the node inside the external data file | |
| externalFileName | string | Name of the external data file |
RemarksThe width of the profile is always 1, since scaling is performed after referencing it (e.g., in the fuselage).
The resulting profile is defined by the following equation:
with c = cornerRadius and r = heightToWidthRatio.

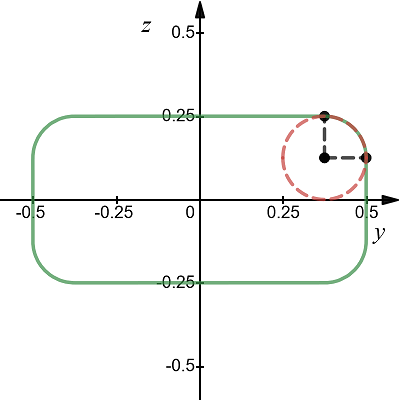

Example: Rectangle with cornerRadius=0.125 and heightToWidthRatio=0.5
