| wingSegmentType Complex Type |
Segment of the wing.
Namespace: Empty
Schema: Empty
Base Type
UsagesChildren| Name | Occurrences | Description |
|---|---|---|
 All | ||
 description | [0, 1] | Description |
| fromElementUID | Reference to the element from which the segment shall start | |
| guideCurves | [0, 1] | Optional and additional guidecurves to shape the outer geometry |
| name | Name | |
| toElementUID | Reference to the element at which the segment shall end |
Attributes| Name | Type | Required | Description |
|---|---|---|---|
 externalDataDirectory |  string | Directory of the external data file | |
| externalDataNodePath | string | Path of the node inside the external data file | |
| externalFileName | string | Name of the external data file | |
| uID | ID | Yes | UID |
RemarksA segment defines which two wing elements (=cross sections) are linked to one wing segment.

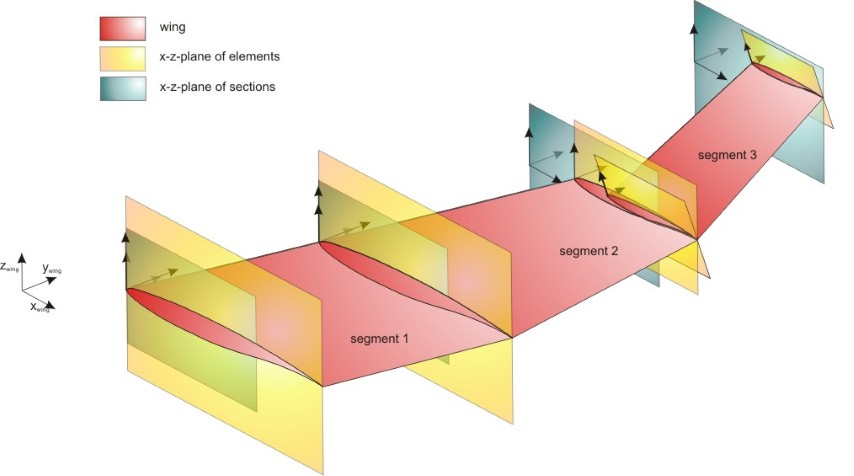

An example for wing segments can be found in the picture below:
