| pointListRelXYZVectorType Complex Type |
List of 3D points, kept in three relative coordinate vecors (rX, rY, rZ)
Namespace: Empty
Schema: Empty
Base Type
UsagesChildren| Name | Occurrences | Description |
|---|---|---|
 All | ||

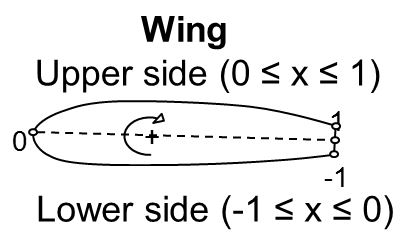

 rX | Vector of rX coordinates. Relative circumferential coordinate on wing, fuselage or nacelle profile. | |
| rY | Vector of rY coordinates. Relative span coordinate along a segment. | |

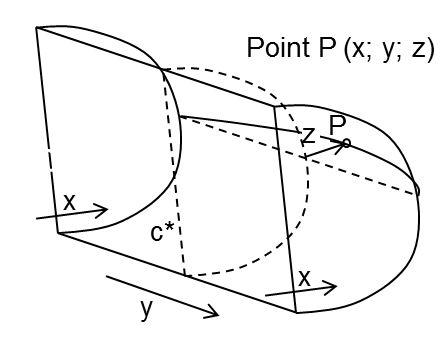

| rZ | Vector of rZ coordinates. Relative coordinate normal to the linear strake (normalised with chordlength / diameter c*) |
Attributes| Name | Type | Required | Description |
|---|---|---|---|
 externalDataDirectory |  string | Directory of the external data file | |
| externalDataNodePath | string | Path of the node inside the external data file | |
| externalFileName | string | Name of the external data file |
RemarksThis set of vectors contains an ordered list of points for rX, rY, and rZ coordinates in the form of stringBased Vectors. The x, y and z vector elements with the same index specify a 3D point relative to a geometric segment.
