| wingSkinType Complex Type |
Material properties of the wing skin.
Namespace: Empty
Schema: Empty
Base Type
UsagesChildren| Name | Occurrences | Description |
|---|---|---|
 material | Material properties |
Attributes| Name | Type | Required | Description |
|---|---|---|---|
 externalDataDirectory |  string | Directory of the external data file | |
| externalDataNodePath | string | Path of the node inside the external data file | |
| externalFileName | string | Name of the external data file |
RemarksThe wingSkinType describes the material properties of the wing.
For composites materials: the positive z-direction is from the outer side to the inner side.

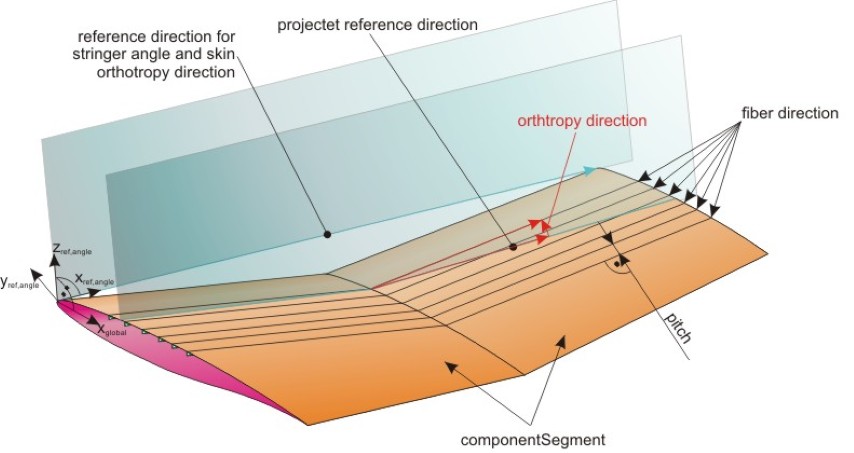

For composites materials: the reference axis for the orthotropyDirection is defined by the two leading edge points of the 'from'- and the 'to'-element of the componentSegment definition. The angle between the reference axis and the orthotropyDirection equals the rotation around the z-reference axis. For details, please refer to the picture below:
