| wingSectionType Complex Type |
Section of the wing.
Namespace: Empty
Schema: Empty
Base Type
UsagesChildren| Name | Occurrences | Description |
|---|---|---|
 All | ||
 description | [0, 1] | Description |
| elements | Elements | |
| name | Name | |
| transformation | Position and orientation |
Attributes| Name | Type | Required | Description |
|---|---|---|---|
 externalDataDirectory |  string | Directory of the external data file | |
| externalDataNodePath | string | Path of the node inside the external data file | |
| externalFileName | string | Name of the external data file | |
| uID | ID | Yes | UID |
RemarksWing section. The sections contains elements, where the airfoils are defined. For the definition of a wing at least two sections (root and tip) have to be defined, but any number greater than 2 is also possible.
Mathematically spoken a section is a coordinate system that is translated, rotated and scaled relative to the wing coordinate system. This transformation parameters are defined within the transformation section.
In addition to the translation, which is defined in the transformation part, the section can be translated by using the positionings vectors (wing->positiongs). Translation of the positionings vectors is added to the translation of the section.

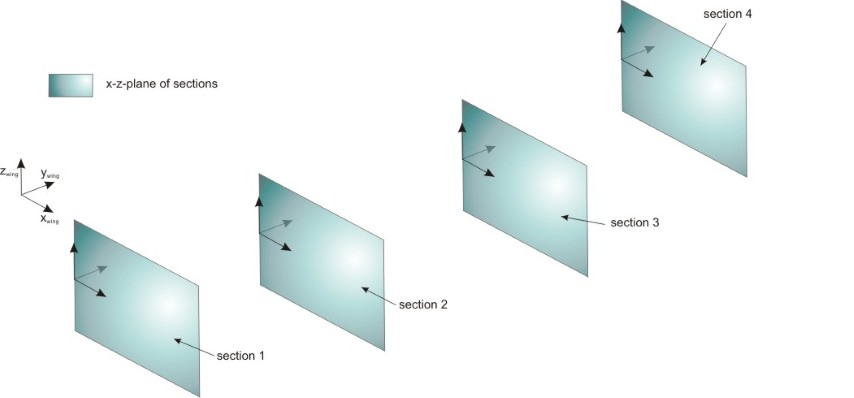

An example for wing sections can be found in the picture below:
