| actuatorControlSurfaceAttachmentType Complex Type |
Definition of the position and material properties of the control surface actuator attachment.
Namespace: Empty
Schema: Empty
Base Type
UsagesChildren| Name | Occurrences | Description |
|---|---|---|
 All | ||
 material | Material properties of the actuator attachment at the parent | |
| parentHeight | Relative height position of the parent actuator attachment. relHeight refers to the parents dimensions. | |
| parentXsi | Relative chordwise position of the parent actuator attachment. Xsi refers to the parents dimensions. |
Attributes| Name | Type | Required | Description |
|---|---|---|---|
 externalDataDirectory |  string | Directory of the external data file | |
| externalDataNodePath | string | Path of the node inside the external data file | |
| externalFileName | string | Name of the external data file |
RemarksDefinition of the position and material properties of the control surface actuator attachment.

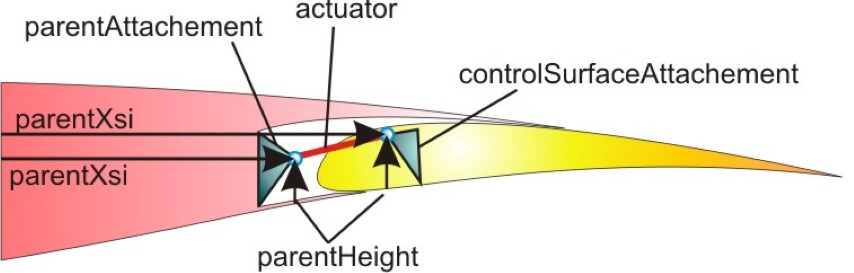

Please refer to the picture below for the definition of the parameters:
