| structuralProfileType Complex Type |
2-dimensional cross sections of structural profiles.
Namespace: Empty
Schema: Empty
Base Type
UsagesChildren| Name | Occurrences | Description |
|---|---|---|
 All | ||
 description | [0, 1] | Description |
| name | Name | |
| pointList | List of structural profile points, only x and y | |
| sheetList | Sheets connecting the profile points |
Attributes| Name | Type | Required | Description |
|---|---|---|---|
 externalDataDirectory |  string | Directory of the external data file | |
| externalDataNodePath | string | Path of the node inside the external data file | |
| externalFileName | string | Name of the external data file | |
| uID | ID | Yes | UID |
RemarksData of a structure profile cross sections. The cross section profile is defined by several points (->pointList) in the x-y-space. Two points are combined to one sheet (->sheetList) by using the pointUIDs.

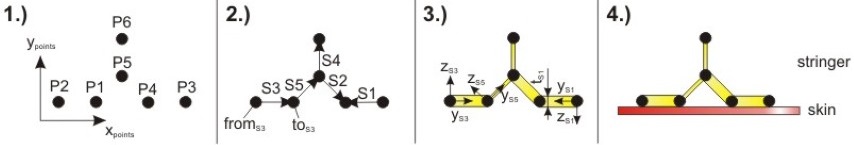

This profile is defined by several points in the x-y-space. Always two points are combined to one sheet. The properties of each sheet are defined in the 'sheetProperties' section by referencing on the sheetUID and the material properties. The orthotropy direction of composite materials equals the x-sheet axis. The orthotropy direction angle equals a positive rotation around the z-sheet axis as indicated in the picture below (part 3.), where a wing stringer is defined as an example:
