rotorBladesType

The rotor blade gometry definitions of an rotorcraft model.

Rotor blade geometries are defined using the same data structure as wings (wingType). But in order to be compatible with the other rotor blade related types (e.g. rotorType, rotorHubType, rotorHubHingeType) there are some additional conventions/requirements regarding the definition and orientation of rotorBlade geometries:

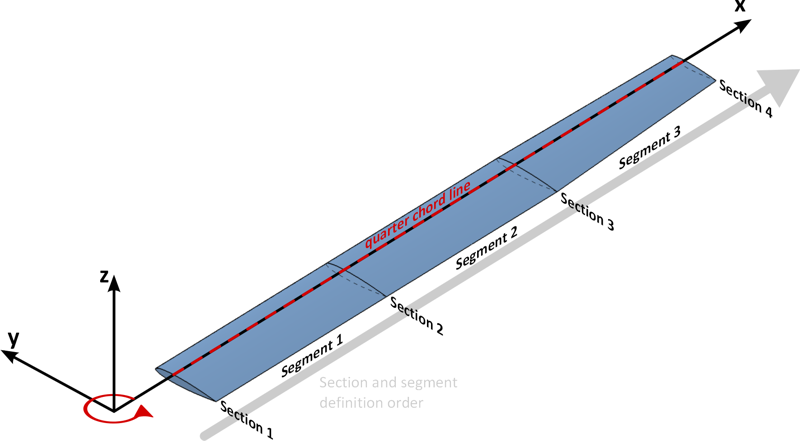

Rotor blades should be positioned relative to the global z-axis the way they will be positioned to the rotor shaft (when blade azimuth=0deg).
The global x-axis should be used as radial axis (usually the quarter chord line of the rotor blade coincides to a great extent with the x-axis of the rotor blade coordinate system).
All sections should be positioned in the positive x halfspace.
Segments should connect sections with ascending x coordinates.
Airfoils defined in the rotorAirfoils node should be used instead airfoils from the wingAirfoils node.

Attributes

Name	Type	Use	Description
`@externalDataDirectory`	`xsd:string`	optional	Directory of the external file the element was read from, as URI
`@externalDataNodePath`	`xsd:string`	optional	Path of the parent element in the merged dataset, at which the element was inserted from an external file
`@externalFileName`	`xsd:string`	optional	Name of the external file the element was read from

Child elements

Name	Type	Constraints	OccurrenceHow often the element may appear at this place. The schema writes it as minOccurs and maxOccurs on the declaration.	Default	Description
sequenceThe children below must appear in exactly this order. Each may repeat as often as its own occurrence allows.
`rotorBlade`	`wingType`		[1..∞] one or more		Rotor blade geometries are defined using the same data structure as wings (wingType). But in order to be compatible with the other rotor blade related types (e.g. rotorType, rotorHubType, rotorHubHingeType) there are some additional conventions/requirements regarding the definition and orientation of rotorBlade geometries: see remarks.

Used by

In a dataset · 1 path

cpacs/vehicles/rotorcraft/model/rotorBlades

In the schema · 1 declaration

Type	Name
`rotorcraftModelType`	`rotorBlades`
