profileBasedStructuralElementType

Short description

The ProfileBasedStructuralElement type containins the data of a structural element, that are based on 2-dimensional profiles.

There are three approaches to model profile based structural elements:

by specifying global beam properties
by referencing a structuralProfile2D element
by choosing one of the prescribed standard profiles

1. Global beam properties

In the section <globalBeamProperties> the properties of the structural profile in an equivalent beam representation are defined.

2. Structural 2D profile

The <structuralProfileUID> element refers to the @uID of the <structuralProfile2D> element. The profile consists of points and of sheets connecting them. The properties of each sheet are defined in the <sheetProperties> element, which references the sheet by its @uID; <pointProperties> reference points of the profile. The coordinate system of a sheet, to which the orthotropy direction of a composite refers, and an example are given in the documentation of structuralProfileType.

3. Standard structural 2D profile

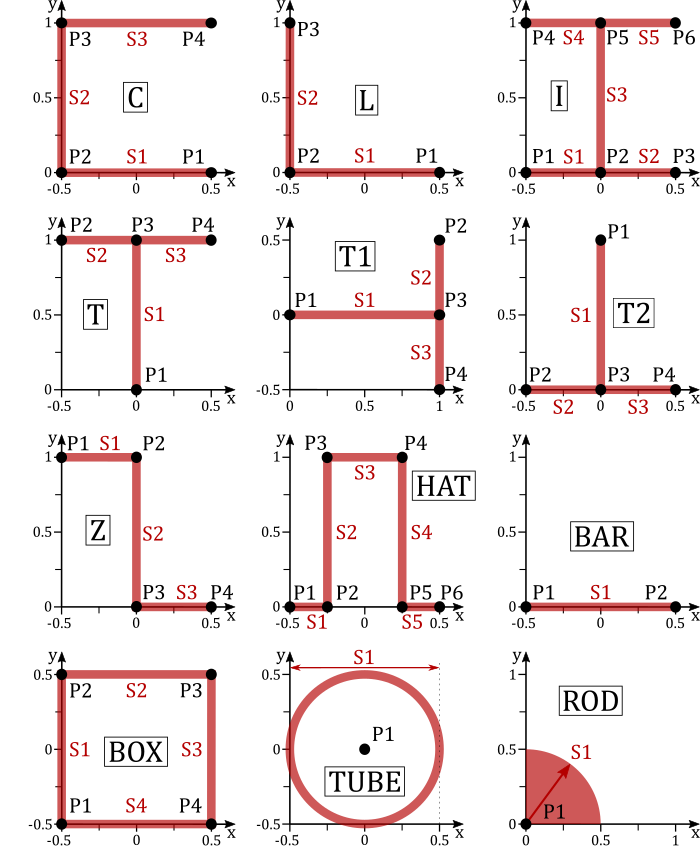

Instead of referencing a <structuralProfile2D> element, it is also possible to select a predefined standard profile. These profiles are listed in the figure below. Under <sheetProperties>, only the <standardProfileSheetID> (equals S1, S2, ...) must now be specified along with a corresponding length.

Attributes

Name	Type	Use	Description
`@externalDataDirectory`	`xsd:string`	optional	Directory of the external file the element was read from, as URI
`@externalDataNodePath`	`xsd:string`	optional	Path of the parent element in the merged dataset, at which the element was inserted from an external file
`@externalFileName`	`xsd:string`	optional	Name of the external file the element was read from
`@uID`	`xsd:ID`	required	UID

Child elements

Name	Type	Constraints	OccurrenceHow often the element may appear at this place. The schema writes it as minOccurs and maxOccurs on the declaration.	Description
sequenceThe children below must appear in exactly this order. Each may repeat as often as its own occurrence allows.
`name`	`stringBaseType`		[0..1] optional	Name
`description`	`stringBaseType`		[0..1] optional	Description
choiceExactly one of the alternatives below may appear, unless the occurrence next to this line says otherwise.
sequenceThe children below must appear in exactly this order. Each may repeat as often as its own occurrence allows.
`sheetProperties`	`materialDefinitionForProfileBasedType`		[1..∞] one or more	Material definition of a sheet of the profile
choiceExactly one of the alternatives below may appear, unless the occurrence next to this line says otherwise.
sequenceThe children below must appear in exactly this order. Each may repeat as often as its own occurrence allows.
`structuralProfileUID`	`stringUIDBaseType`		[1..1] required	Reference to the structural profile profile UID
`pointProperties`	`materialDefinitionForProfileBasedPointType`		[0..∞] any number	Material definition of a point reinforcement of the profile
`referencePointUID`	`stringUIDBaseType`		[0..1] optional	Reference point in structural profile definition for structural element definition
`standardProfileType`	`stringBaseType`	12 values	[1..1] required	Standard Profile Type, see picture below for further information
`globalBeamProperties`	`globalBeamPropertiesType`		[0..1] optional	Global beam properties
`transformation`	`transformation2DType`		[0..1] optional	Two-dimensional transformation
