nacelleCenterCowlType

complexType · extension complexBaseType · all

Center cowl

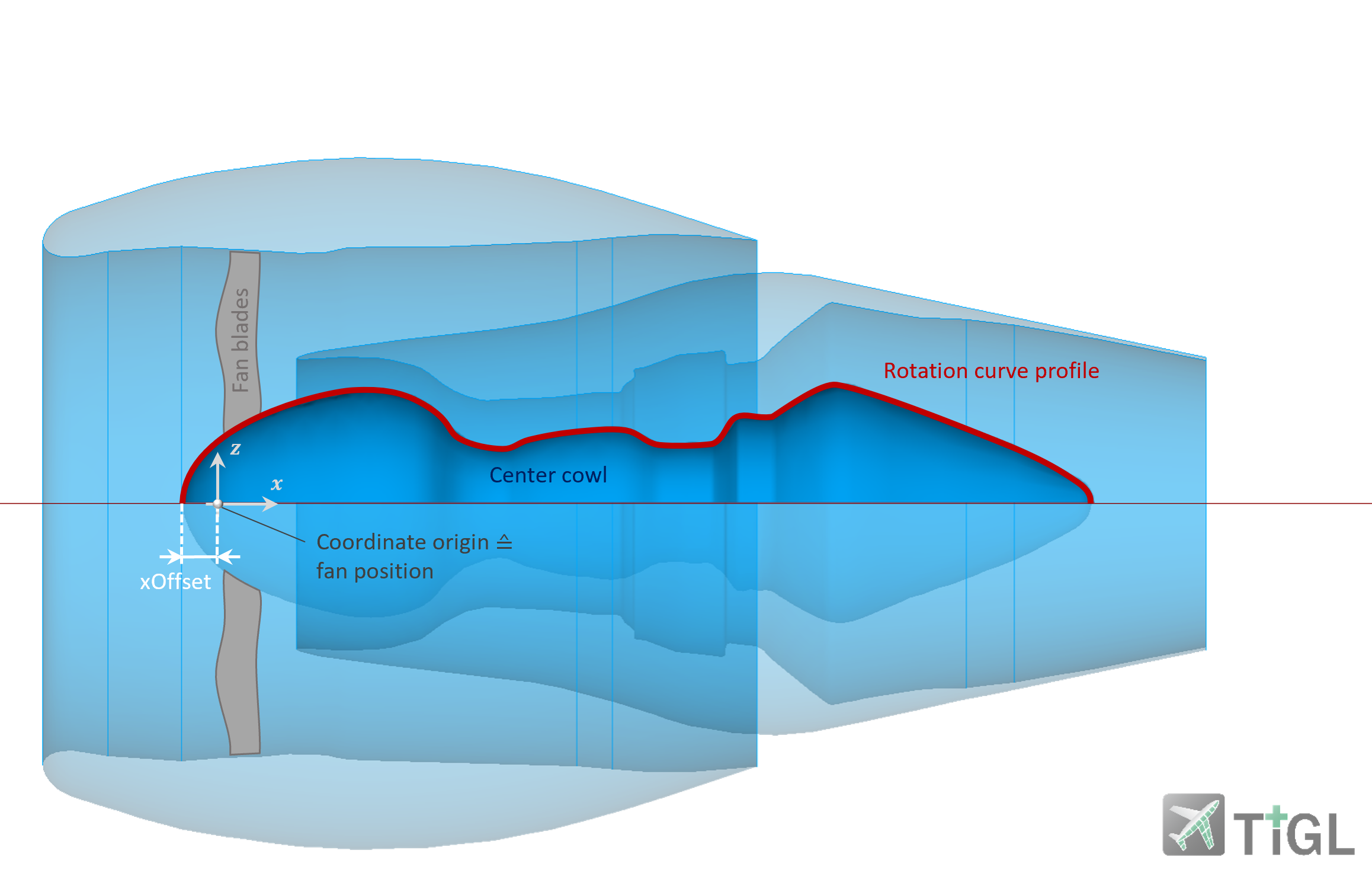

The <centerCowl> is defined by the rotation of a given curve profile (referenced via <curveUID>) around the x-axis.

Center cowl

Attributes

Name	Type	Constraints	Use	Default	Description
`@externalDataDirectory`	`xsd:string`		optional		Directory of the external file the element was read from, as URI
`@externalDataNodePath`	`xsd:string`		optional		Path of the parent element in the merged dataset, at which the element was inserted from an external file
`@externalFileName`	`xsd:string`		optional		Name of the external file the element was read from
`@uID`	`xsd:ID`		required		UID

Child elements

Name	Type	Constraints	OccurrenceHow often the element may appear at this place. The schema writes it as minOccurs and maxOccurs on the declaration.	Default	Description
allThe children below may appear in any order. Each may appear at most once.
`xOffset`	`doubleBaseType`		[1..1] required		Offset of the rotation curve in x-direction
`curveUID`	`stringUIDBaseType`		[1..1] required		UID of the curve profile (vehicles/profiles/curveProfiles/..)

Used by

In a dataset · 1 path

cpacs/vehicles/engines/engine/nacelle/centerCowl

In the schema · 1 declaration

Type	Name
`engineNacelleType`	`centerCowl`
