studiesType

complexType · extension complexBaseType · all

Design study parameters and results

Contains optimization data such as definitions of design parameters and design studies.

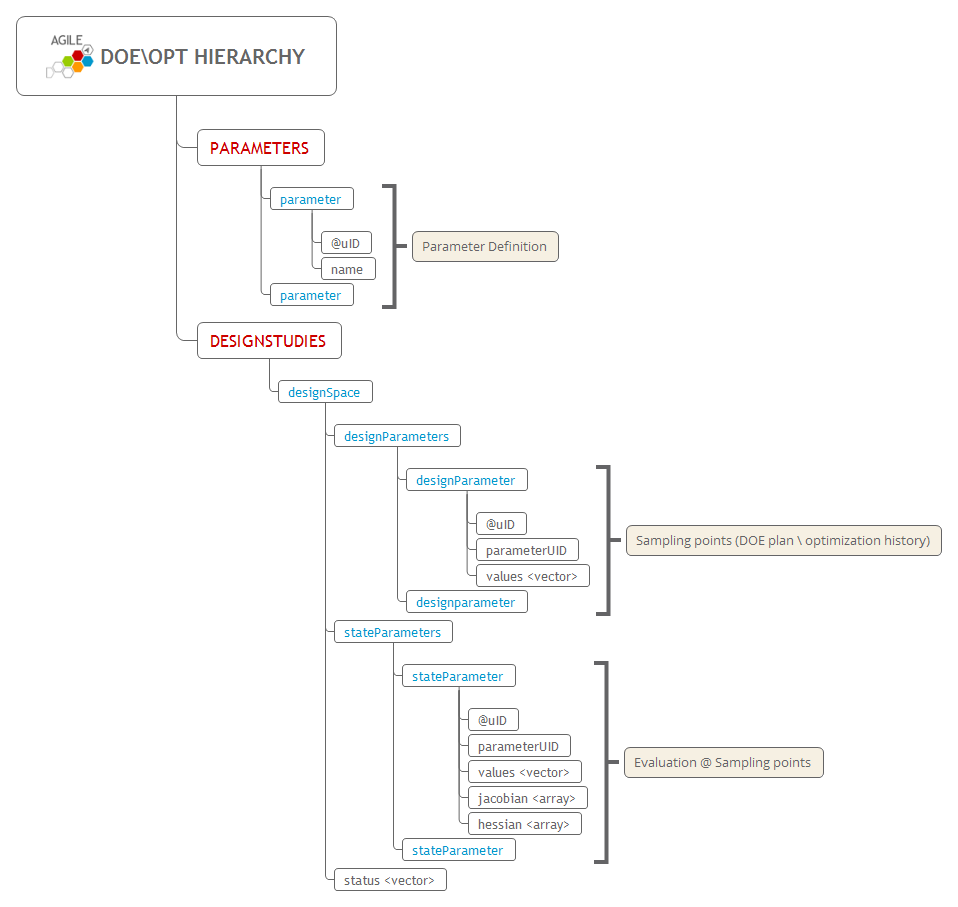

DOE definition structure

Attributes

Name	Type	Constraints	Use	Default	Description
`@externalDataDirectory`	`xsd:string`		optional		Directory of the external file the element was read from, as URI
`@externalDataNodePath`	`xsd:string`		optional		Path of the parent element in the merged dataset, at which the element was inserted from an external file
`@externalFileName`	`xsd:string`		optional		Name of the external file the element was read from

Child elements

Name	Type	Constraints	OccurrenceHow often the element may appear at this place. The schema writes it as minOccurs and maxOccurs on the declaration.	Default	Description
allThe children below may appear in any order. Each may appear at most once.
`parameters`	`parametersType`		[1..1] required		Parameters used in the design studies
`designStudies`	`designStudiesType`		[1..1] required		Design studies

Used by

In a dataset · 1 path

cpacs/studies

In the schema · 1 declaration

Type	Name
`cpacsType`	`studies`
