landingGearComponentAssemblyType

Child elements

Name	Type	OccurrenceHow often the element may appear at this place. The schema writes it as minOccurs and maxOccurs on the declaration.	Description
sequenceThe children below must appear in exactly this order. Each may repeat as often as its own occurrence allows.

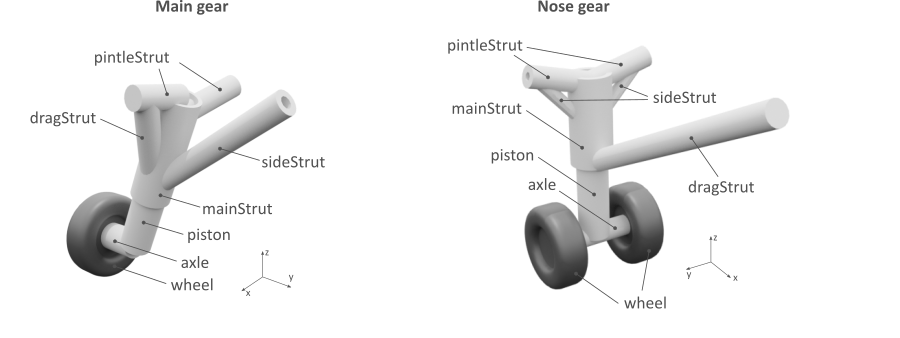

`mainStrut`	`strutType`	[1..1] required	Main strut
`piston`	`pistonType`	[1..1] required	Piston
choiceExactly one of the alternatives below may appear, unless the occurrence next to this line says otherwise.
`axle`	`axleType`	[1..1] required	Axle
`bogie`	`bogieType`	[1..1] required	Bogie
`dragStrut`	`strutAssemblyType`	[0..1] optional	Drag strut (Assumption: one end of the strut will connect to the main strut and the other end will be given as endPoint)
`pintleStruts`	`pintleStrutsType`	[0..1] optional	Pintle struts
`sideStruts`	`sideStrutsType`	[0..1] optional	Side struts
`mainActuator`	`mainActuatorType`	[0..1] optional	Main actuator
