genericGeometricComponentType

In some cases additional geometric components need to be linked to a CPACS, but these components are not yet handled by CPACS explicitly. For example, a belly fairing and/or external tanks.

A generic geometric component may be applied to include such a geometry from an external file (preferably STEP) in the context of the overall aircraft.

Attributes

Name	Type	Constraints	Use	Description
`@externalDataDirectory`	`xsd:string`		optional	Directory of the external data file
`@externalDataNodePath`	`xsd:string`		optional	Path of the node inside the external data file
`@externalFileName`	`xsd:string`		optional	Name of the external data file
`@symmetry`	`symmetryXyXzYzType`	5 values	optional	Symmetry plane the component is mirrored at
`@uID`	`xsd:ID`		required	UID

Child elements

Name	Type	OccurrenceHow often the element may appear at this place. The schema writes it as minOccurs and maxOccurs on the declaration.	Description
allThe children below may appear in any order. Each may appear at most once.
`name`	`stringBaseType`	[1..1] required	Name
`description`	`stringBaseType`	[0..1] optional	Description
`parentUID`	`stringUIDBaseType`	[0..1] optional	Component this geometric component is attached to, if any. Its translation is then given relative to the position of that component.

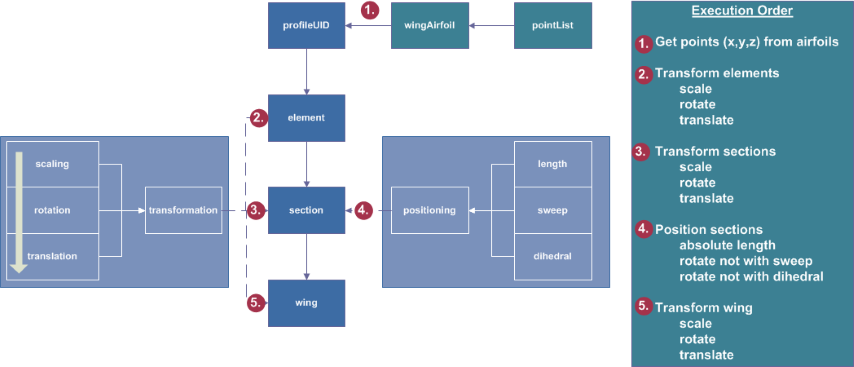

`transformation`	`transformationType`	[1..1] required	Position and orientation
`linkToFile`	`linkToFileType`	[1..1] required	Reference to the geometry file
